製品詳細
起源の場所: 深セン、中国
ブランド名: WONSUN
証明: CE, ISO
モデル番号: DZ-138
支払いと送料の条件
最小注文数量: 1個
価格: 交渉可能
パッケージの詳細: まずバブルラップに詰められ、次に外側の梱包用のカートンで補強します。
受渡し時間: 支払いを受け取ってから3〜7営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 3000セット/月
特徴: |
高耐久性LEDキャビネット |
スピード: |
0.9秒～8秒調整可能 |
最高の腕の長さ: |
6mストレートアーム/4.5mツーフェンスアーム |
定格電力: |
200W |
駆動方法: |
サーボモーター |
電源: |
AC100-265V |
MTBF: |
1000万 |
モーター 無負荷の速度: |
3000r/分 |
特徴: |
高耐久性LEDキャビネット |
スピード: |
0.9秒～8秒調整可能 |
最高の腕の長さ: |
6mストレートアーム/4.5mツーフェンスアーム |
定格電力: |
200W |
駆動方法: |
サーボモーター |
電源: |
AC100-265V |
MTBF: |
1000万 |
モーター 無負荷の速度: |
3000r/分 |

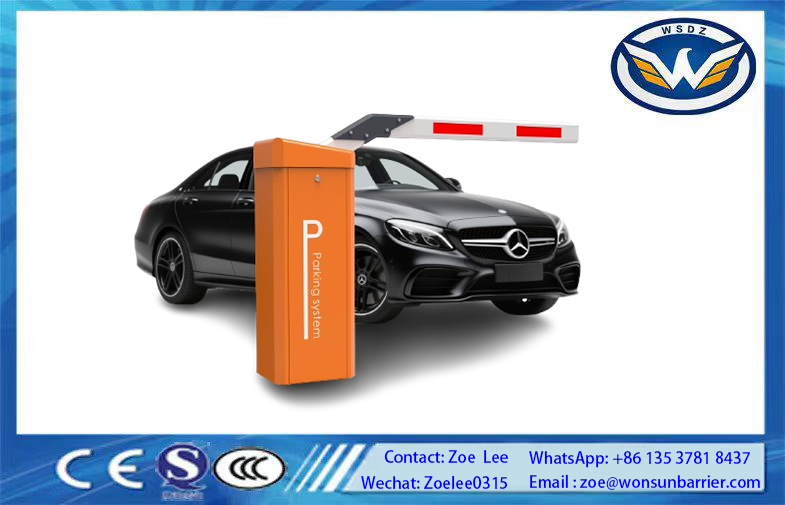

High-Speed Servo Barrier Gate for Parking & Highway Traffic Control
Product Overview
Shenzhen Wonsun Machinery & Electrical Technology Co., Ltd. presents the DC 2nd Gen Servo High-Speed Barrier Gate, a next-generation traffic control solution engineered for efficiency, safety, and reliability. As a patented product, this barrier gate (also known as traffic barrier, parking barrier, and highway barrier) is powered by a 2nd generation servo high-speed motor, delivering ultra-fast opening speeds as low as 0.9 seconds, making it ideal for high-traffic scenarios like parking lots, highways, toll stations, and commercial premises. With a compact, durable design and intelligent control system, it seamlessly regulates vehicle access, enhances security, and optimizes traffic management efficiency for global customers.
Key Specifications & Technical Parameters
Adaptable Boom Length: 3M-6M (customizable for straight, folding, or fence arms)
Product Dimensions: 340×298×928×2.0 (MM)
Driving Method: 2nd Gen Servo Motor (3000R/MIN no-load speed)
Running Speed: 0.9S-8S (fully adjustable)
Rated Power: 200W
Power Supply: AC200V/AC110V 50/60Hz
Working Temperature: -35℃~+85℃ (suitable for extreme weather)
Humidity: ≤90%
Protection Class: IP54 (dustproof & waterproof for outdoor use)
Remote Control Distance: ≤100M (open & sunny weather)
Material: High-strength galvanized steel housing, aluminum alloy boom with anti-rust coating
Standard Color: Orange housing + white boom with red reflective strips (customizable RAL colors available)
Core Advantages
✅ Ultra-Fast Operation: 0.9S minimum opening speed eliminates traffic jams in busy parking lots and toll stations
✅ Patented Servo Technology: 2nd gen servo motor ensures low noise, high torque, and long service life (≥5 million cycles)
✅ Comprehensive Safety Features: Obstacle auto-reverse, loop detector/radar anti-collision, infrared photocell sensor, and power-off manual operation
✅ Intelligent Control: Adjustable speed, limit angle, and direction; supports RS485 communication, traffic light output, and fire linkage
✅ Wide Application: Perfect for parking lots, highways, residential communities, industrial parks, and toll stations
Contact Information
Business Manager: Zoe Lee
Company: Shenzhen Wonsun Machinery & Electrical Technology Co., Ltd.
Email: zoe@wonsunbarrier.com
WhatsApp: +86 13537818437
Wechat: Zoelee0315
Factory Address:
1st Floor, Zhigu, No. 2-10, South jinlong Avenue, Shahu Community, Biling Street, Pingshan District, Shenzhen, China.
Zip Code: 518118
